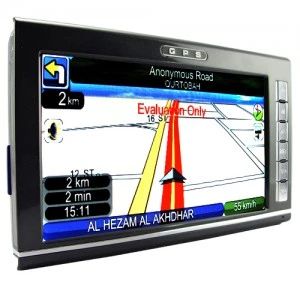

7 Inch Portable GPS Navigation Touchscreen Unit

7 inch GPS navigation and multi media unit with touchscreen interface.

Do you want a large screen GPS navigation system for when you are on the road but do not want to go to the trouble or expense of installing a 2-DIN unit into your car? Do you need a GPS navigator that you can use in your car as well as when you are walking around the city? Then have we got the answer for you! This portable 7" TFT (16:9) touch screen GPS unit will guide you anywhere you need to go in the city or country, plus comes with the Win CE operating environment, meaning it works with almost all of todays popular GPS software packages.

Very easy to install and operate, the CVSB-CS07 features a flexible arm bracket for easy installation in your car and is compact enough to be used as an all-in-one portable unit (while at the same time having a very large 7 inch crystal clear display!). So not only can this new GPS navigation unit can be used as a modern car GPS or portable system, but it can also be used as your cars Bluetooth handsfree device.

With its additional rich media features, when you are on the train or camped down for the night, this unit can also be used as a convenient media player (digital audio and video files). So thoughtfully designed, this unit even has an earphone jack and mini-USB to enhance its everyday usefulness - from GPS unit to guide the way to portable media player for maximizing enjoyment during your down time away from the road.

At a Glance...

• 7 inch GPS and multimedia unit with touchscreen interface.





• Use it as your vehicle GPS unit or take it out of the car and put into your bag or backpack so you can use it in your daily life in the city or country.





• Use it while on holiday - slip in an SD card for the new area of the world you will be exploring and you never have to worry about getting lost!





The unit includes an SD card with evaluation GPS software. You will need to purchase GPS map software for this product to function properly as a navigator. After an extensive review of the available global GPS map providers we have found that the best GPS maps for each region of the world, including Europe, South America, Arabia/Middle East and North America, are usually found in the users own country. Therefore we encourage you to buy GPS map software from a supplier in your home country.

China Manufacturer Specifications

• Primary Function: 7 inch GPS and multimedia unit with touchscreen interface





• Display Information
  - 7 inch TFT touch screen (Screen resolution: 480 x 234)
  - Power ON button
  - Menu button
  - AV button
  - Set button
  - +/- Volume control





• Bluetooth Functions
  - Pair with phone - then use touchscreen interface
  - Dial call
  - Answer call
  - Volume control
  - Touchscreen keypad





• General GPS System Specifications
  - Interface: Touch Screen
  - GUI Interface: YES - 3D type
  - Voice: YES
  - Maps: via SD card
  - CPU frequency: 400MHZ
  - Chipset: Samsung S3C2440A-400
  - Operating system: WIN CE 4.2 NET (compatible with all major GPS software packages**)





• GPS Hardware Specification
  - Receiving module: SiRF Star III
  - Frequency: 1.575 GHZ
  - C/A code: 1.023 MHZ chip rate
  - Signal channels: 20 Channels
  - Sensitivity: -159dBm
  - Position: 10m, 2D RMS
  - Accuracy: 5M, 2D RMS, WAAS enable
  - Speed rate: 0.1m/s
  - Data upgrading Rate: 1HZ
  - Signal missing Time: 0.1m/s in average
  - Maximum position Altitude: 18,000m
  - Maximum speed Rate: 515m/s
  - Built in antenna type: built-in power porcelain antenna
  - External antenna port: MMCX
  - Current of the outside antenna: 15ma





• Battery Life: up to 3 hours active, 144 hours sleep mode





• Certification: CE, FCC





• Dimensions: H: 120mm x L: 195mm x W: 25mm





• OSD Menu Languages: English, German, French, Spanish, Portuguese, Chinese, Polish, Turkish, Italian, Magyar, Czech, Danish, Norwegian, Finish, Greek, Romanian, Eesti, Latviesu, Lietuviu (Note: Actual GPS voice and display languages depends on the GPS software used)





Product Notes

• This is a rich featured GPS navigation and media system. We recommend carefully reading the user manual for your most satisfactory user experience.





• This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. We provide the GPS-enabled hardware only, not the software.





• Frontside mini-USB port is a great way to hook up your portable media devices with the CVSB-CS07





• Media Features:
  - FM transmission
  - Plays MP3, WAV and Midi audio files
  - Plays MP4, AVI, ASF, WMV video files
  - Plays BMP, JPEG, GIF, PNG image files
  - Active sync with your PC/Laptop





Package Contents

• Model CVSB-CS07 GPS Navigator





• Power Charger (100-240V 50/60Hz)





• Car Charger





• 3.5 mm Jack - AV Cable





• Mounting Bracket





• Mounting Bracket Plate





• USB extension cable





• Earphones





• User Manual - English
