Inspection & Surveilance Video Camera - Flexible Pinhole Camera

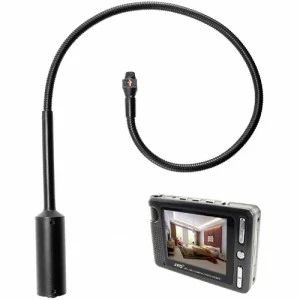

Flexible inspection and under-door video camera for getting into hard to reach places (or even spying on the next room!). Often called a snake or gooseneck videocamera, this omni-directional pinhole camera allows you to see into many hard to reach areas and is small enough to be slipped under doors. Used for inspection of hard to reach areas such as ceiling plenum's, electrical wall panels, underneath or behind heavy object, etc. When used as an inspection tool, the included video receiver / recorder unit (pocket sized 2.5 inch TFT LCD) can view and record all the work area for immediate use and later review in the office or out in the field. When used as a surveillance camera, it can be mounted where other cameras will not fit and can but used without notice. Can also be used with its metal mounting canopy to be a low profile security or surveillance camera.

Note: We are not liable for any misuse of this product.

Camera Specification

• Image Device: Sony CCD with 420 lines Horz Resolution





• Lens: 3.7mm pinhole style





• TV system: AUTO - NTSC: 512 x 492, PAL: 512 x 582





• Angular Field of View: 60 degrees





• Camera Range: Up to 50 feet Line of Sight (LOS)





• Minimum Illumination: 0.5 lux





• Synchronization System: Internal





• White Balance: Auto





• Gamma: 0.45





• S/N Ratio of built in Microphone: > 48dB





• Operation Temperature: -10 deg C to 50 deg C





• Dimension
  - Camera / Flexible Wand (arm) = 24 inches (60cm)
  - Connection Cord from Wand = 48 inches (120cm)





• Power Consumption: 120 mAh





• Power Supply: 12V DC (supplied battery pack)





• Battery Pack
  - Dimensions: 98mm x 60mm x 23mm (L x W x D)
  - Type: Rechargeable Li-ion
  - Power: 1800mAh
  - Extra: On-Off rocker switch and LED indicator





• Manufacturer Ref.: PYVELKCO6E5X





Video Receiver/Recorder Specification

• Display: 2.5 Inch TFT LCD





• Resolution: 320x240





• Internal Memory: 1GB





• External Memory: SD Card (Up to 2GB) for longer recordings and playback





• Languages: English, Spanish, Russian, Portuguese, Japanese, Korean, Chinese





• USB: 2.0, 1.1





• System: Windows 98SE/ME/2000/XP/Vista





• Power Source: 5v DC





• Internal Battery: Rechargeable li-ion





• Dimension: 90mm x 55mm x 15mm (L x W x D)





• AV OUT/IN (NTSC/PAL)





• Video:
  - Capture Format: MPEG4 (AVI)
  - FPS (Frames per Second): 25fps
  - Capture Resolution: 320x240
  - Capture Compression Settings: High, Normal, Low





• Audio:
  - Capture Format: WAV
  - Output of Earphone Jack: 2x5mW
  - Output of Speaker: 10mW
  - SNR (Signal to Noise Ratio): > 85dB





• Picture:
  - Capture Format: JPEG, EXIF2.1





Other Features:

• Built in Microphone





• Standard headphone jack (3.5mm)





• Provided with metal mounting canopy with rotating angle stanchion





Accessories:

• User Manual





• Video camera external battery pack





• Video camera battery power adapter/charger





• AV out cord (3 x RCA RWY)





• Video viewer/recorder with 2.5 inch LCD screen





• Metal ceiling/wall canopy





• Mounting hardware
