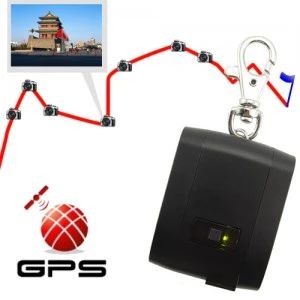

GPS Receiver + Data Logger + Photo Tagger (Keychain Edition)

• Primary Function: Three-in-one GPS receiver, data logger, photo tagger





• Power: Built in rechargeable 540mAh Li-Polymer battery (up to 8 hours after fully charged)





• Interface: USB port





• Color: Black





• Dimensions (mm): 47 (L) x 38 (W) x 13 (H)





• Manufacturer Ref: E5Z1J78HCRDZ





• Manufacturing Setting:
  - Protocol: NMEA 0183 - GGA, GSA, GSV, RMC
  - Baud Rate: 9,600 bps; Datum: WGS-84
  - WAAS/EGNOS supported





• GPS Features:
  - Skytraq Venus 5 with super high sensitivity at -159dBm
  - Frequency: L1, 1575.42 MHz; C/A Code: 1.023 MHz chip rate
  - Acquisition time: Hot start 1 sec. / Warm start 32 sec. / Cold start 35 sec. (averaged)





• Bluetooth Features:
  - Bluetooth Version: V2.0 / SPP Profile
  - Class 2 with 10 meters in open space





• Flash Memory Features:
  - Built-in flash memory: 8M Bits for data logging with 8 bytes binary data per record
  - Storage: up to 100K data records





• Software languages: English, Spanish, French, German, Dutch, Italian, Portuguese, Russian, Thai, Korean, Japanese, Simplified Chinese, Traditional Chinese.





Product Notes

• GPS data logger and photo tagger functions requires only this device and the free included sotware: no subscriptions, no fees!





• Accurate within up 1 to 5 meters





• Low power consumption





• Quick reacquisition of satellites





• This GPS dongle is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. The wholesaler provides the GPS-enabled hardware only, not the software.





Package Contents

• Model CVHN-G49 GPS Receiver + Data Logger + Photo Tagger (Keychain Edition)





• Mini-CD (English user guide; drivers for Mac, Linux, and Windows operating systems; GPS testing software)





• Power Charger (110-240V)





• Car Cigarette Adapter





• USB to mini-USB cable





• Setup Guide - English
